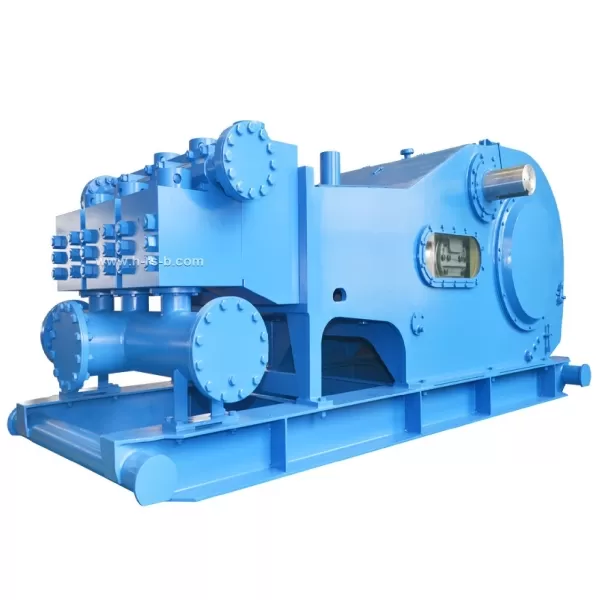

Available in 800,1300 and 1600 horsepower configurations and the fluid ends are compatible with BOMCO parts, thereby reducing inventory requirements.
Technical description
▶ Gear pair. Integral herringbone gear transmission, high transmission torque, stable operation.
▶ Frame. It is welded from steel plates and annealed after welding. Necessary oil pools and passages are provided in the frame. It adopts a split structure due to weight limitations.
▶ Crankshaft. It adopts alloy steel material. Both ends of the crankshaft are equipped with double row centripetal spherical roller bearings.
▶ Gear shaft. The shaft is an alloy steel forging with herringbone teeth machined on it. Both ends of the gear shaft can be equipped with a transmission device.
▶ Cross head. It is integrally cast with ductile iron and has good wear resistance.
Optional configuration
▶ Hydraulic cylinder. The material is alloy steel forgings, with I-type and L-type structures. The I-type hydraulic end has a compact structure and the L-type is easy to maintain.
▶ Lubrication system Using a combination of forced lubrication and splash lubrication, an external motor can be used to drive the oil pump according to user requirements.
▶ Spray system The centrifugal pump provides coolant to the cylinder liner. The main pump drive shaft is equipped with a pulley drive, or it can be driven by an electric motor alone.
▶ Cantilever suspension system Installed on the rack for use when removing and replacing hydraulic end components such as cylinder liners. Reduce the labor intensity of drilling workers.
▶ Safety valve There are two options, shear pin safety valve and spring return safety valve.
If you have further requirements, please contact the RS engineer.
Introduction to FT Split Pump:
The FT split pump is a type of pump designed with a split casing, which allows easy access to internal components without the need to disconnect the pump from the piping. This design makes it highly suitable for various industrial applications where maintenance efficiency is crucial.
Key Features of FT Split Pump:
Split Casing Design: The pump's casing is split horizontally, enabling easy inspection and maintenance of internal parts, such as the impeller and bearings, without dismantling the entire pump.
Robust Construction: FT split pumps are built with durable materials, ensuring long-lasting performance even in demanding environments.
High Efficiency: The design of the FT split pump allows for efficient fluid transfer with minimal energy consumption, making it an economical choice for continuous operation.
Application Scenarios of FT Split Pump:
Water Treatment Plants: Used for circulating and transferring large volumes of water.
Oil and Gas Industry: Ideal for handling crude oil, refined products, and other petrochemical liquids.
Power Generation: Commonly used in cooling water systems and other fluid handling applications in power plants.
HVAC Systems: Employed in heating, ventilation, and air conditioning systems for large commercial buildings.
Advantages of FT Split Pump:
Ease of Maintenance: The split casing allows for quick access to the pump's internals, reducing downtime and maintenance costs.
Cost-Effective Operation: The high efficiency of the pump translates to lower energy consumption, which can result in significant cost savings over time.
Reliable Performance: The robust design ensures consistent and reliable performance, even under challenging operating conditions.
Versatility: The FT split pump is suitable for a wide range of fluids, making it a versatile solution for various industries.
